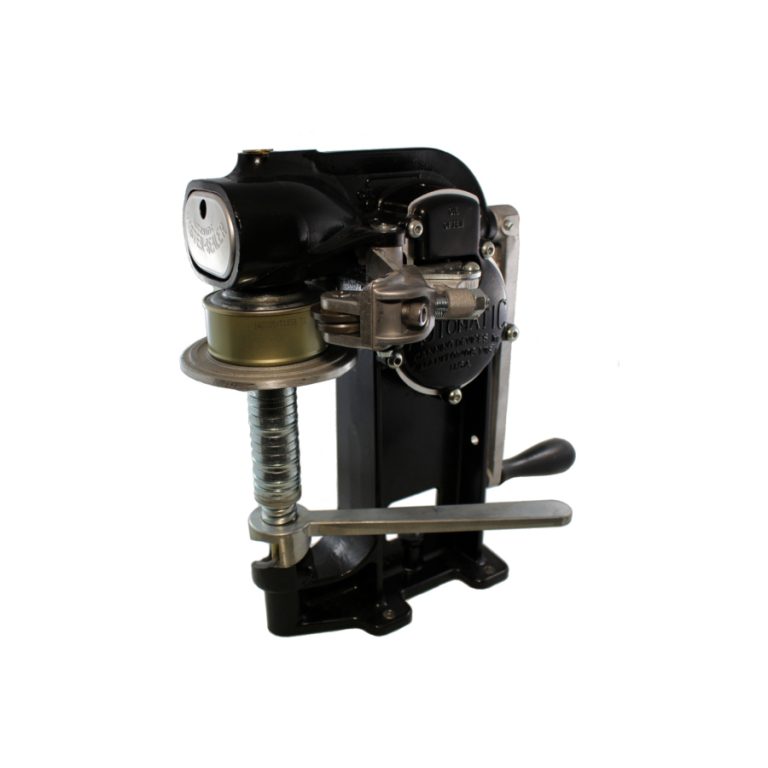

Manual Can Sealer: All American Model 225

  • Colour: Black
  • Seals multiple sizes of cans (setup required)
  • Simple to configure and operate
  • Highly portable and easy to store
  • Suitable for field use canning maple syrup, dry herbs, honey and more
  • All American can sealer parts readily available

Can and Chuck Setup

Clear
SKU: CSAA225B Category: Tags: , , ,

Description

Manual Can Sealer: All American Model 225

This All American manual can sealer is a highly portable and versatile machine that is capable of sealing several different can sizes. Each can size needs a specific chuck size fitted to the machine. In order for the correct chuck to be fitted the diameter of the chuck must match the diameter of the can that you intend to use with your Model 225 can sealer. The Model 225 comes fitted with one chuck size of your choice at time of ordering your can sealer. Additional chucks to fit different can size diameters  are available under our Can Sealer Parts section and are sold separately. It is this feature of being able to easily change chucks that makes the All American range of can sealers a good choice for the amateur canning enthusiast.

Feature Highlights

  • Colour: Black Frame and Base
  • Seals multiple sizes of cans (setup required)
  • Easy to configure and operate
  • All American can sealer parts readily available
  • Easy to use crank handle can sealer
  • Crafted of the finest hand cast aluminum
  • Designed for use in a multiple variety of applications.
    1. light commercial outfits for unique or gourmet type products
    2. home canning for long term storage
    3. custom cannery operations
    4. gift packaging centers
    5. experimental laboratories
    6. school culinary and lunch rooms
  • Achieve an output of up to 150 cans per hour (could be less depending on your processing requirements)
  • Little skill or experience is required to perfectly seal tin cans automatically
  • Highly portable and can be used in field or off-grid operations
  • Model is Manufacturer’s 2016 Design Revision (Current design)

Typical Uses

  • Canning maple syrup and raw honey on-site and off-site
  • Sealing dry herbs and teas
  • Canning fish, salmon, tuna, and other sea foods
  • Sealing garden vegetable harvest
  • Canning beers and beverages (needs special modification)

Can Sealer Setup Requirements:

In order to successfully seal a can with the All American Can Sealer Model 225, the following components need to be configured correctly:

  1. Chuck size to match can requirements
  2. Turn table base plate to match can requirements
  3. Base plate shaft size (short or long)
  4. Required number of spacer washers
  5. Seaming roller stage positioning



Can Dimension Conversion Chart***

In order to help you understand the various sizes of cans, the following chart is a comparison of the food cans that we carry. It lays out the naming convention of the can, dimensions, capacity, and type of can, and the size of chuck required on your can sealer;

Can Name

Can Size

Approx. Capacity **

Can Style

Chuck Size

2oz Dry Herb Can 2-11/16″ Dia. x 1-1/16″ High 2oz Steel, Straight smooth sides 211
4oz Tuna Can 3-1/16″ Dia. x 1-6/16″ High 4oz Steel, Straight smooth sides 301
6oz Salmon Can 3-7/16″ Dia. x 1-11/16″ High 6oz Steel, Straight, smooth sides 307
8oz Tapered Salmon Can 3-7/16″ Dia. x 2″ High 8oz Steel, Tapered, smooth sides 307
#1 Can 2-11/16″ Dia. x 4″ High 10oz Steel, Straight, beaded sides 211
#2 Short Can 3-7/16″ Dia. x 3-1/2″ High 13oz Steel, Straight, beaded sides 307
300 Can 3″ Dia. x 4-7/16″ High 14oz Steel, Straight, beaded sides 300
16oz Tapered Salmon Can 3-1/16″ Dia. x 4-8/16″ High 16oz Steel, Tapered, smooth sides 301
#2 Can 3-7/16″ Dia. x 4-9/16″ High 19oz Steel, Straight, beaded sides 307
#2 1/2 Can 4-1/16″ Dia. x 4-11/16″High 28oz Steel, Straight, beaded sides 401
#3 Tall Can 4-4/16″ Dia. x 7″ High 48oz Steel, Straight, beaded sides 404
#10 Can 6-3/16″ Dia. x 7″ High 100oz Steel, Straight, beaded sides 603

Metal Tin Can Dimensions

Understanding metal tin can dimensions is easy if you know how to interpret the numbers. Here is a guide to help you.

  • In North America, numbers are usually stated in inches and in 16th of an inch.
  • By way of convention, the diameter of the can is always mentioned first.
  • The most basic can size description lists only two dimensions: diameter x height.
  • Each number is a three digit number which is broken down into the following components:

(a) The first digit represents inches.

(b) The second and third digits represent a 16th of an inch.

An Example – Putting it all together

A can with the dimensions 307 x 409 means that the can is 3 inches and 7/16th of an inch wide (across its diameter); and it is 4 inches and 9/16th of an inch high. So using the cart above, this can in our example is a #2, 19oz, can.

Looking for more metal tin can options?

For an overview of other cans we have on offer, please review the product descriptions listed for each can under our Metal Food Cans section.

Need a Manual Can Sealer or an Electric Canning Machine?

For an overview of the canning machines we have on offer, please review the product descriptions listed for each machine under our Manual Can Sealers and Electric Canning Machines section.



*** Chart is for easy reference purposes only. Exact can capacities may vary slightly.

** Sizes are descriptive for comparison purposes. Please ensure that the product is suitable for your intended purpose.

Additional information

Weight 13 kg
Dimensions 47 × 41 × 32 cm
Available Options

3oz 211×106, 4oz 301×106, 6oz 307×111, 8oz 307×200, 10oz 211×400, 13oz 307×308, 14oz 300×408, 16oz 301×408, 19oz 307×409, 28oz 401×411

Product Brand

All American

Equipment Type

Can Sealer

Equipment Brand

All American
