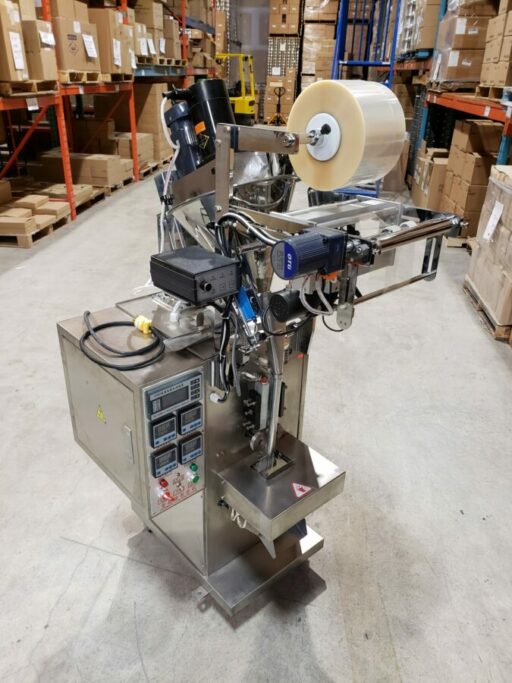

Vertical Form Fill Seal Machine

$7,000.00

Automated Dry Goods Pouch-Filling Machine

This Vertical Form Fill Machine is a dry goods automated pouch-filling machine. The filling machine is fitted with an auger filler that uses a dosing system to pack a wide range of powder foods such as flour, milk powder, cocoa powder, coffee powder, curry, starch etc. The unit forms bags from roll stock allowing for higher speeds of production while providing a used programmed date stamp on each package. Package costs are significantly less than those systems utilizing pre-made pouches.

*** Call (604)-420-0959 for more details!



1 in stock

SKU: WC-VFFSM-CU Category:

Description

Automated Dry Goods Pouch-Filling Machine

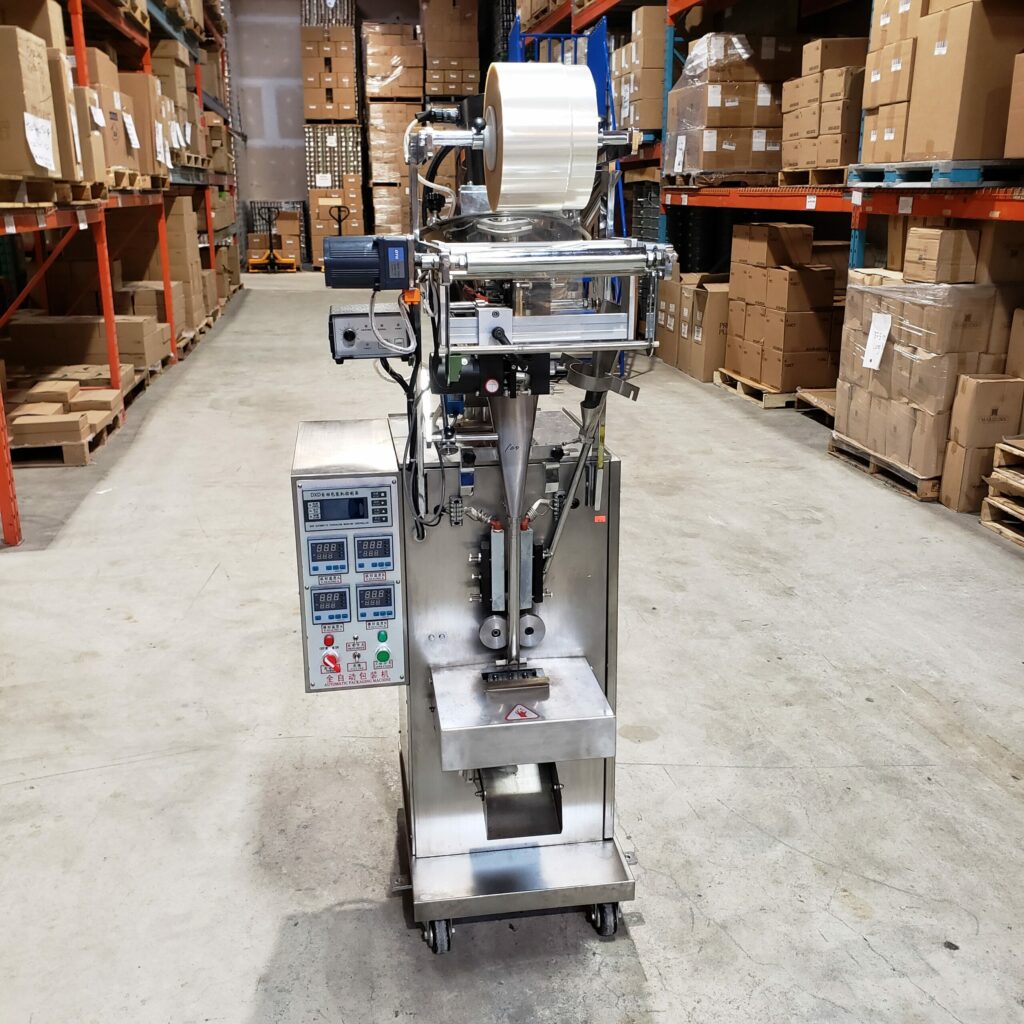

Vertical Forming/Filling Packaging Machine (Vertical-form-fill-Seal Machine)

Condition: USED, As is

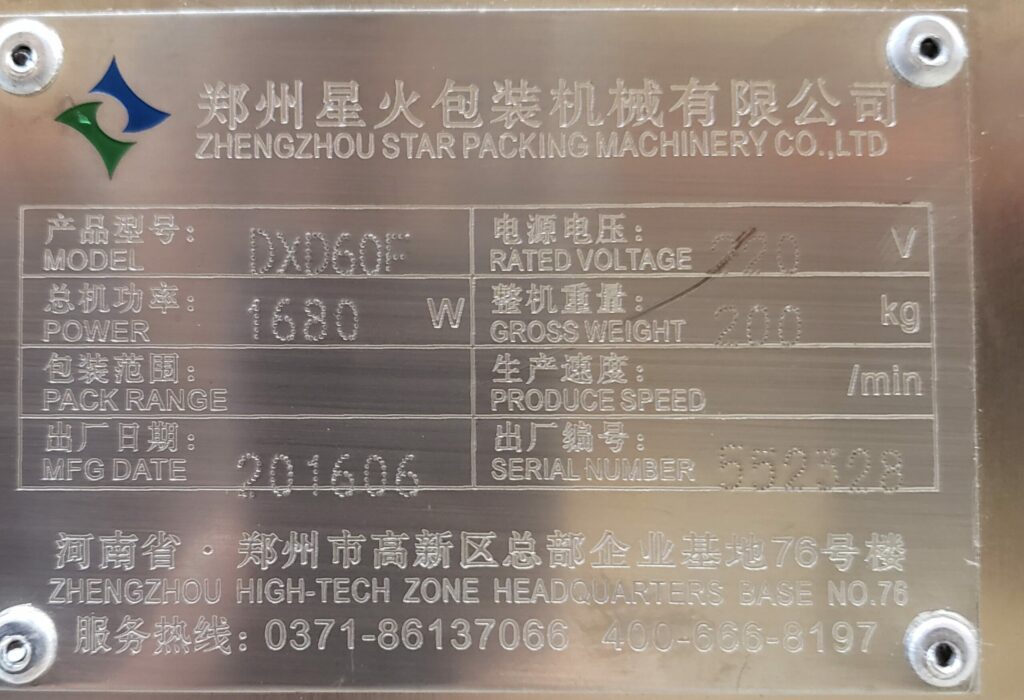

Model: DXD60F
Voltage: 220V 1PH
Power: 1680W
Gross Weight: 200 kg
MFG Date: 201606
Speed: 30-60 bag/min
Bag width: 20 mm – 40 mm
Bag length: 50 mm – 150 mm
Country of origin: China

Features:

  • 3-side seal
  • Stainless steel body

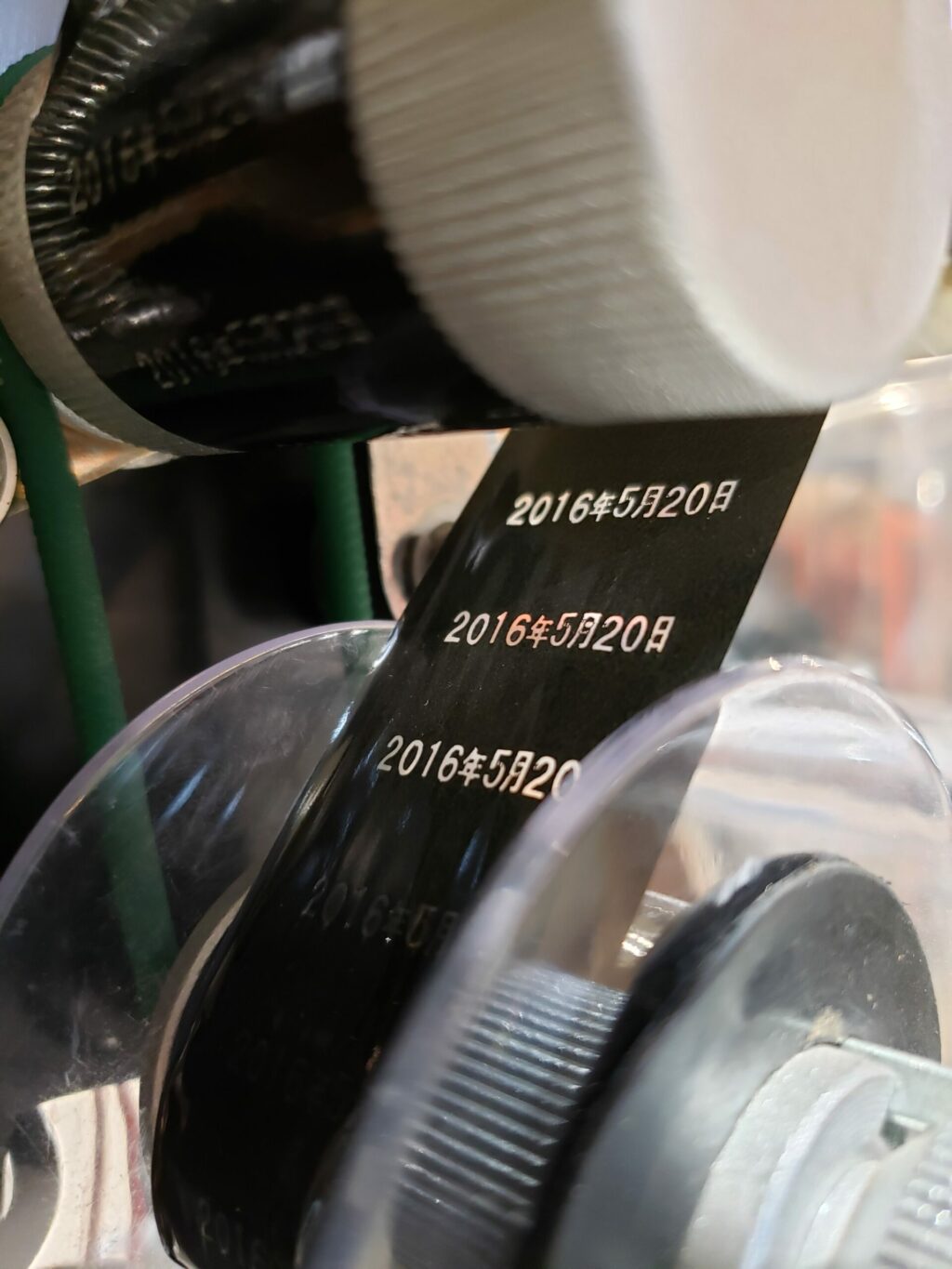

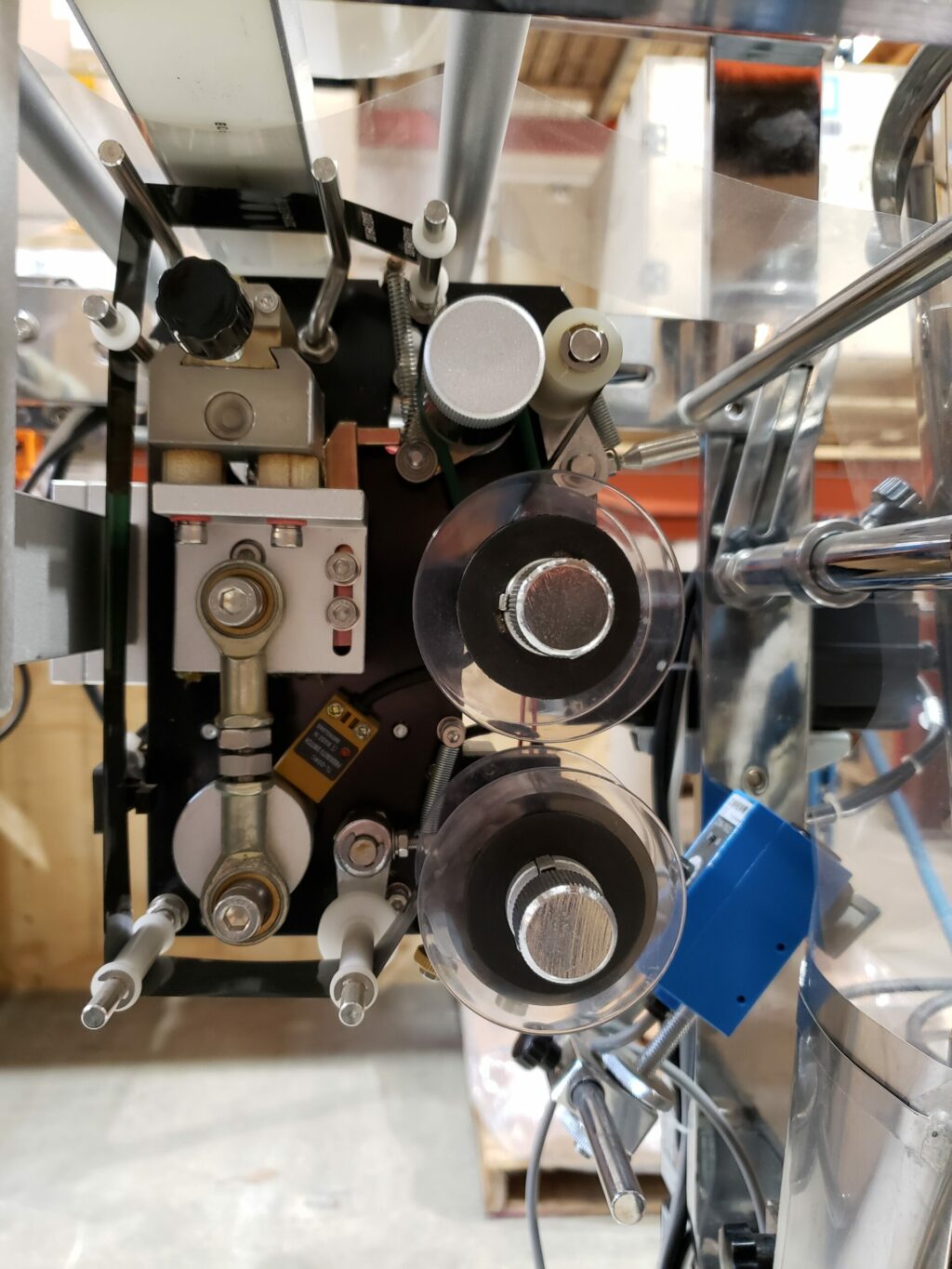

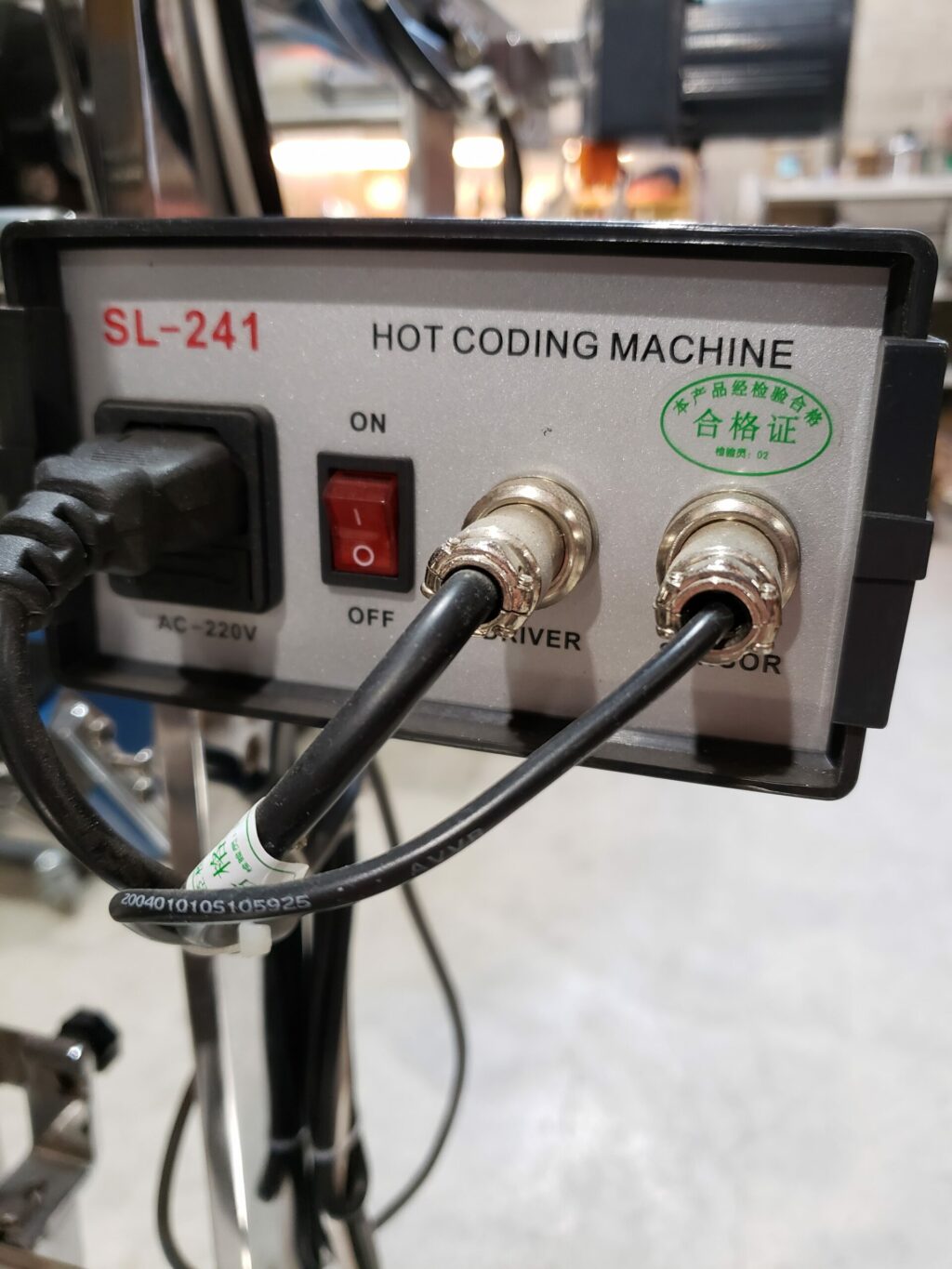

  • Date coding stamper (Ribbon type)
  • Adjustable filling range

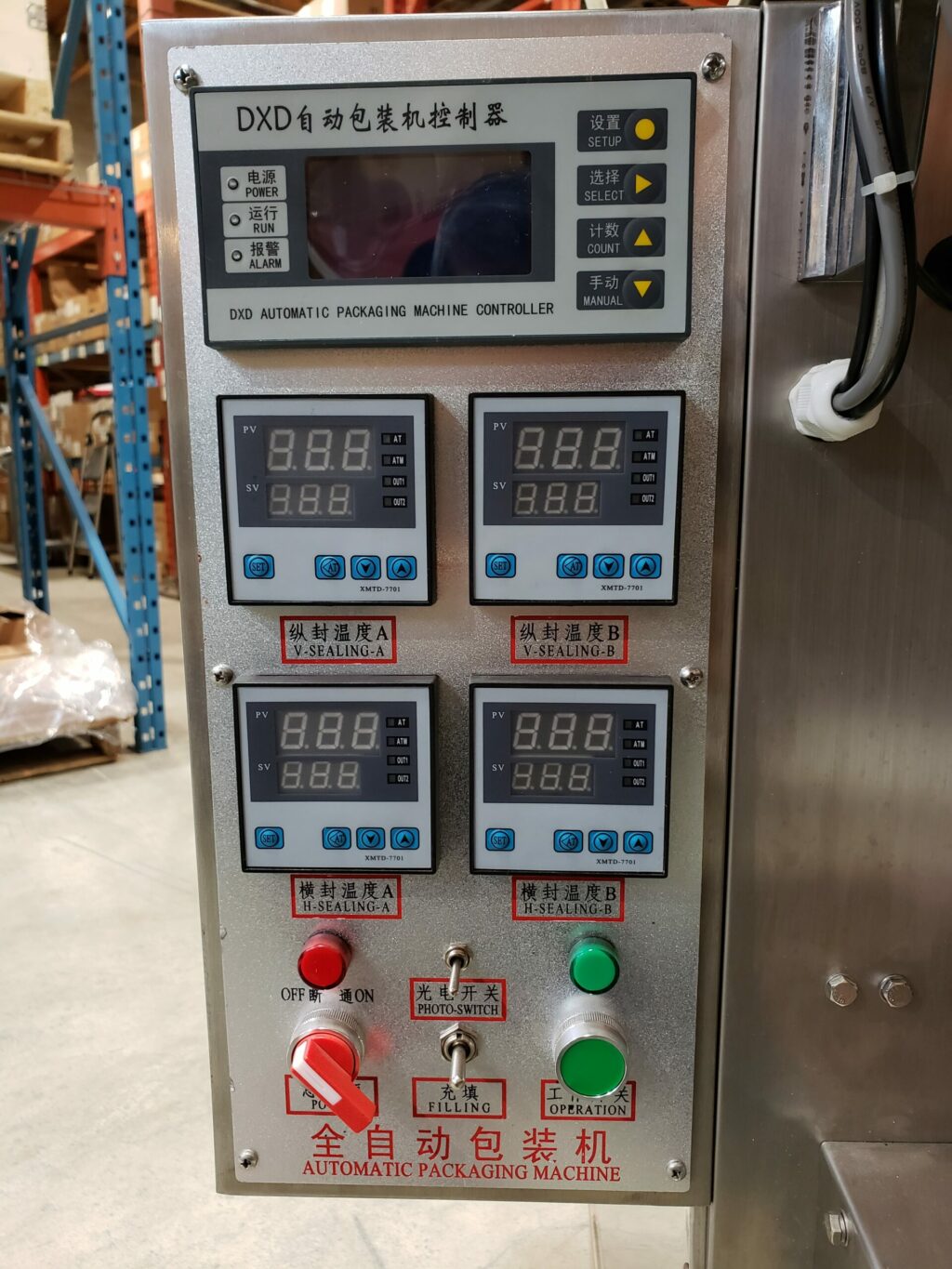

  • Digital Electronic controller

Includes:

  • 1x Bag forming tube 70 mm film
  • 1x Bag forming tube for 100 mm film

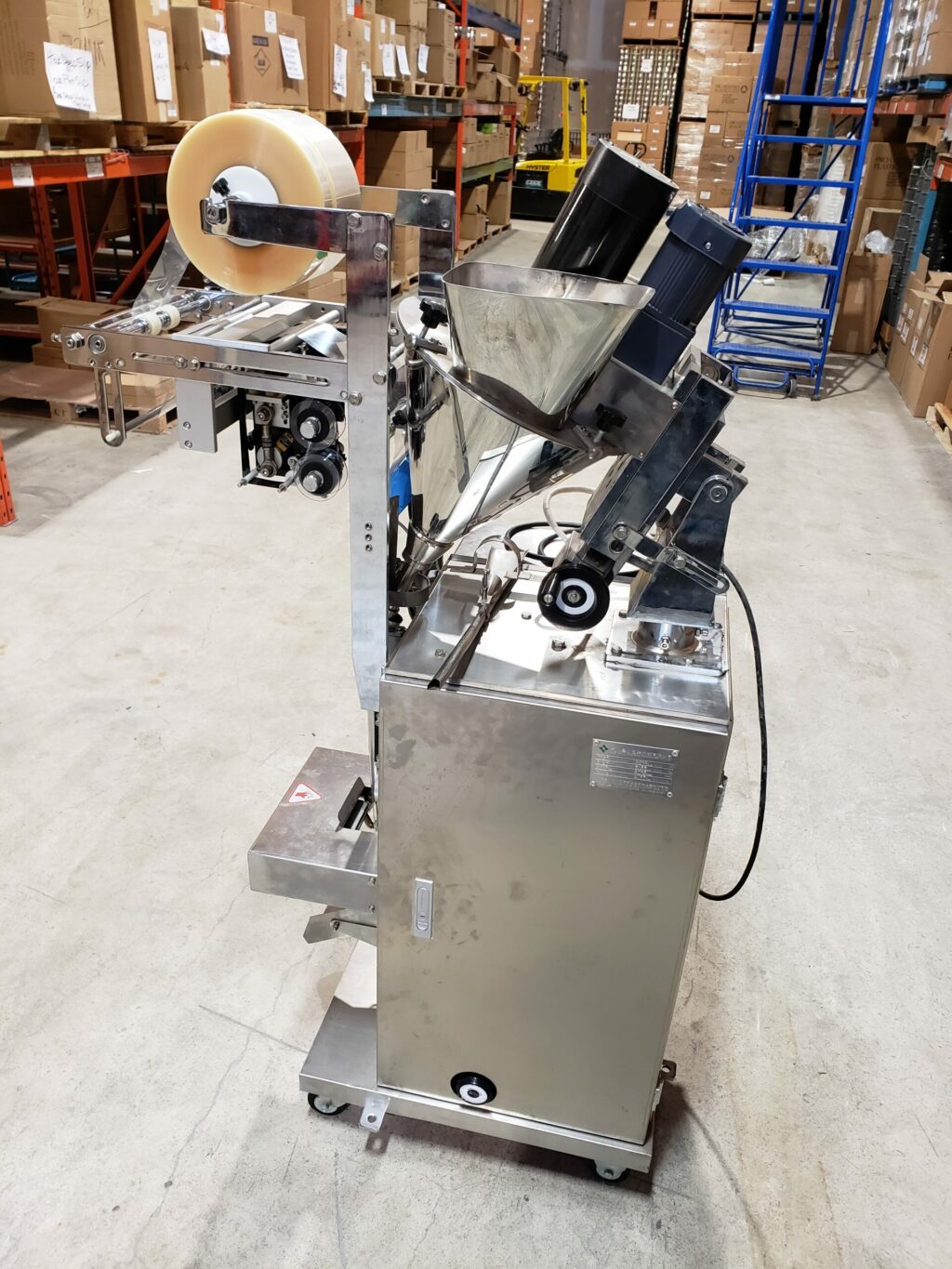

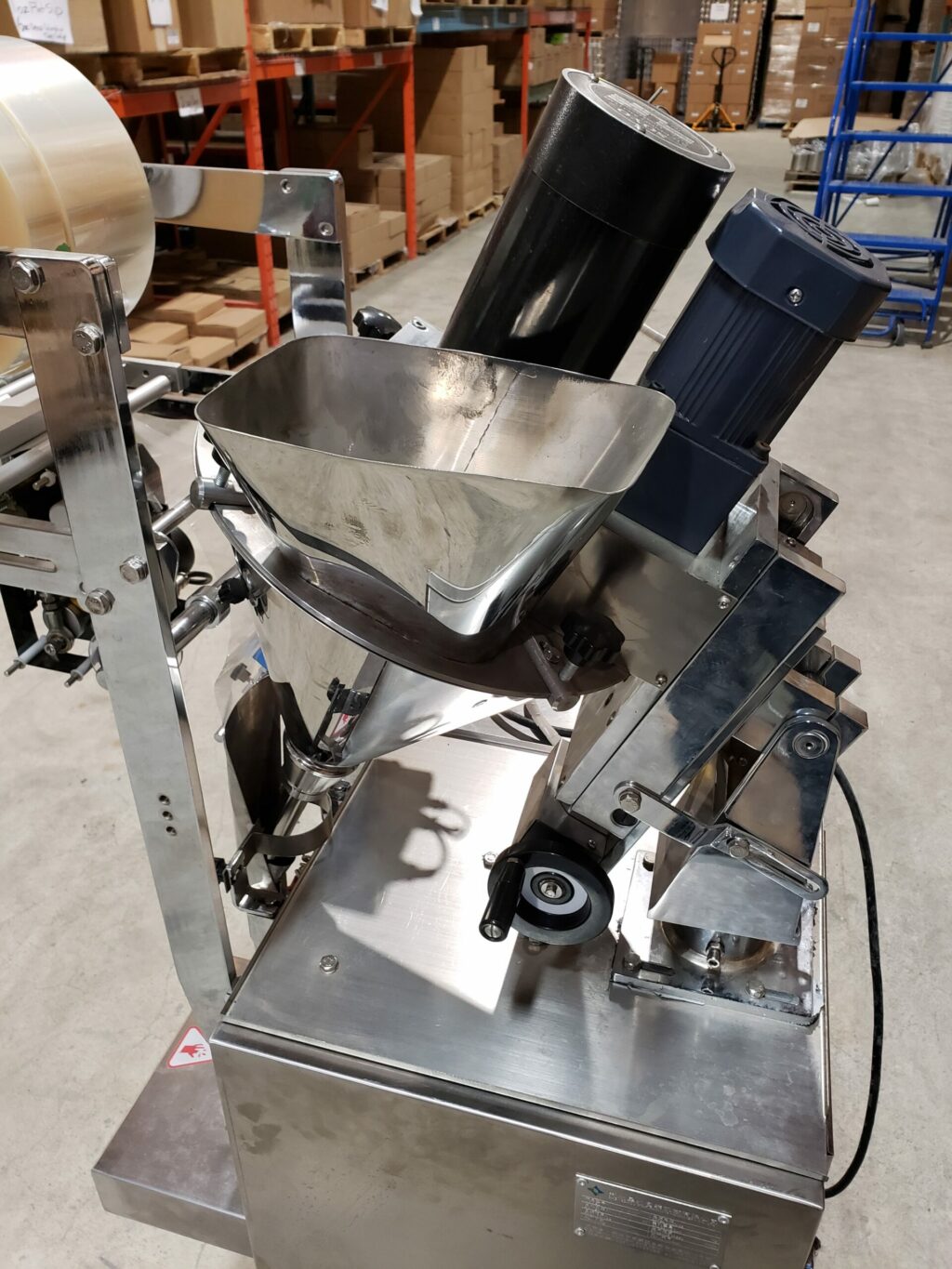

  • 1x Auger screw feeder and hopper

———

Vertical Form Fill Machine is a dry goods automated pouch-filling machine. This Vertical Form Fill Machine with auger filler uses a dosing system that can pack a wide range of powder foods such as flour, milk powder, cocoa powder, coffee powder, curry, starch etc. The unit forms bags from roll stock allowing for higher speeds of production. Each package costs significantly less than those utilizing pre-made pouches.

The basic functions of the machine.

Step 1: Bag Forming:
The initial step performed by the machine is forming the bag from the roll of film. To do that, the machine feeds the film over a cone shaped tube called a forming tube, which shapes the film into the correct bag size and seals the bottom, as well as the vertical seam where the two edges of the film come together. A date/batch code can be printed on the film during this step.

The forming tube’s design sets the width of the bag, with the length ultimately controlled by the bagging machine itself. To switch over to a different bag width, an operator can quickly swap in a new forming tube.

Step 2: Dosing and Filling the Product

The next step in the process is filling, which is accomplished by connecting the bagging machine to an auger filler. Those two machines are synced electronically, so that as soon as the bag is ready, the product is dropped in automatically.

Step 3: Sealing and Finishing
And once the product has dropped into the bag, the top is sealed and the bag is completed and cut away. That top seal on the first bag becomes the bottom of the next bag, and the process repeats.

Additional information

Weight 75 kg
Dimensions 90 × 90 × 120 cm
