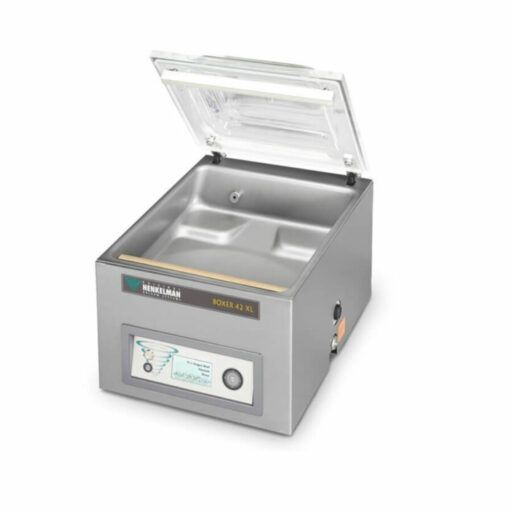

Boxer 42XL Henkelman Chamber Vacuum Sealer


Henkelman seal systems

The right seal solution protects products efficiently against external elements. Henkelman offers several seal systems for your specific application. This depends on the type of vacuum bag (PA/PE, shrink bag, bags with aluminum coating), thickness of the bag, the desired seal and other requirements. Choose the right seal for your vacuum packages today.

Expected availability is 6 weeks

SKU: GBS42XLSB-1 Category: Tag:


Boxer 42XL CombiVac Henkelman Chamber Vacuum Sealer

Boxer vacuum sealers come standard with CombiVac technology including a 20 program memory, full colour screen and a USB connection. The Henkelman Boxer table-top models are HACCP compliant and compatible with a direct label printer.


Boxer 42XL

Solid table-top with maximum pump capacity

Chamber dimensions (L x W x H):
18″ x 16.5″ x 7″
Machine dimensions (L x W x H):
24.2″ x 19.4″ x 17.3″
Seal bar (L):
Pump capacity:
889 cf/h (25 m³/h)
Machine cycle:
20-40 sec


Gas flush

Prior to the seal phase, a gas or nitrogen can be added. Henkelman vacuum packaging machines can be equipped with the option Gas flush or Modified Atmosphere Packaging (MAP). It depends on the product which gas is most suitable. Your supplier can inform you best which is the optimum composition for your application.


N2, CO2, O2, AR

Gas mixture

Injecting a gas increases the product’s shelf life, it offers extra protection and it prevents the product from colouring. Usually, a mixture of nitrogen (N2) and carbon dioxide (CO2) is used. Dioxygen (O2) can also be added to this combination. The use of argon (Ar) has been increasing, as this contains the same properties as nitrogen (N2).

Do you want to learn more about the gas mixtures for different types of food products? Find out the handy gas selector of Air Products.

Gas flush is available on all series, except Jumbo and Titaan.


Added value of numerous options

All Boxer models are standard equipped with Time control, a 10 program memory and Double, Cut-off or Wide seal. Choosing the Henkelman Advanced Control System adds significant value to your packaging. Marinating function included. The benefits of ACS:

  • Standard Sensor control
  • Compatible with label printer
  • Standard with 20 program memory
  • 4.7″ LCD screen
  • HACCP compliance
  • USB connection
  • Multilevel access
  • Intuitive operation

Additional information

Weight 175 kg
Dimensions 62 × 52 × 50 cm
